media-;-`leader - تنظیم usb to com1 برای اپگرید با لپ تاپ
http://fab.cba.mit.edu/content/tools/microcontrollers/prolific.jpg


شما به یک رابط USB به سریال نیاز دارید

آین نوع کابلها در بازار کامپیوتر وجود دارد.
برای استفاده از آن باید ستینگ پورتها به اینصورت باشد:
COM1 - 3F8h
COM2 - 2F8h
COM3 - 3E8h
COM4 - 2E8h
برای تغییر ستینگ کام پورتها در ویندوز 98 و XP به اینصورت عمل کنید:

Right-click on "My Computer"
Click the "Device Manager" tab.
Click the "+" by "Ports"
Select "USB to Serial Port (COM5)"
Click the "Properties" button
Click the "Resources" Tab.
Uncheck the box that says "Use automatic sttings".
Select the "Input/Output range"
Click the "Change Settings " button.
Click the little arrows until you find an appropriate setting. "02E8-02EF" should give you a COM4 setting after you restart the computer.
Make sure to click "OK" on all screens.
Use the following settings to get the following COM ports:
COM1 - 3F8h
COM2 - 2F8h
COM3 - 3E8h
COM4 - 2E8h

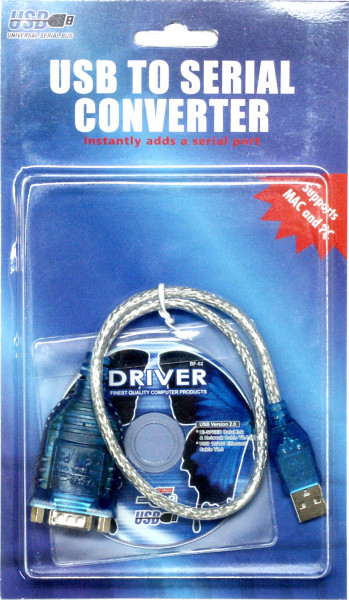

http://www.scantool.net/images/products/usb_serial_big.jpg
